Description

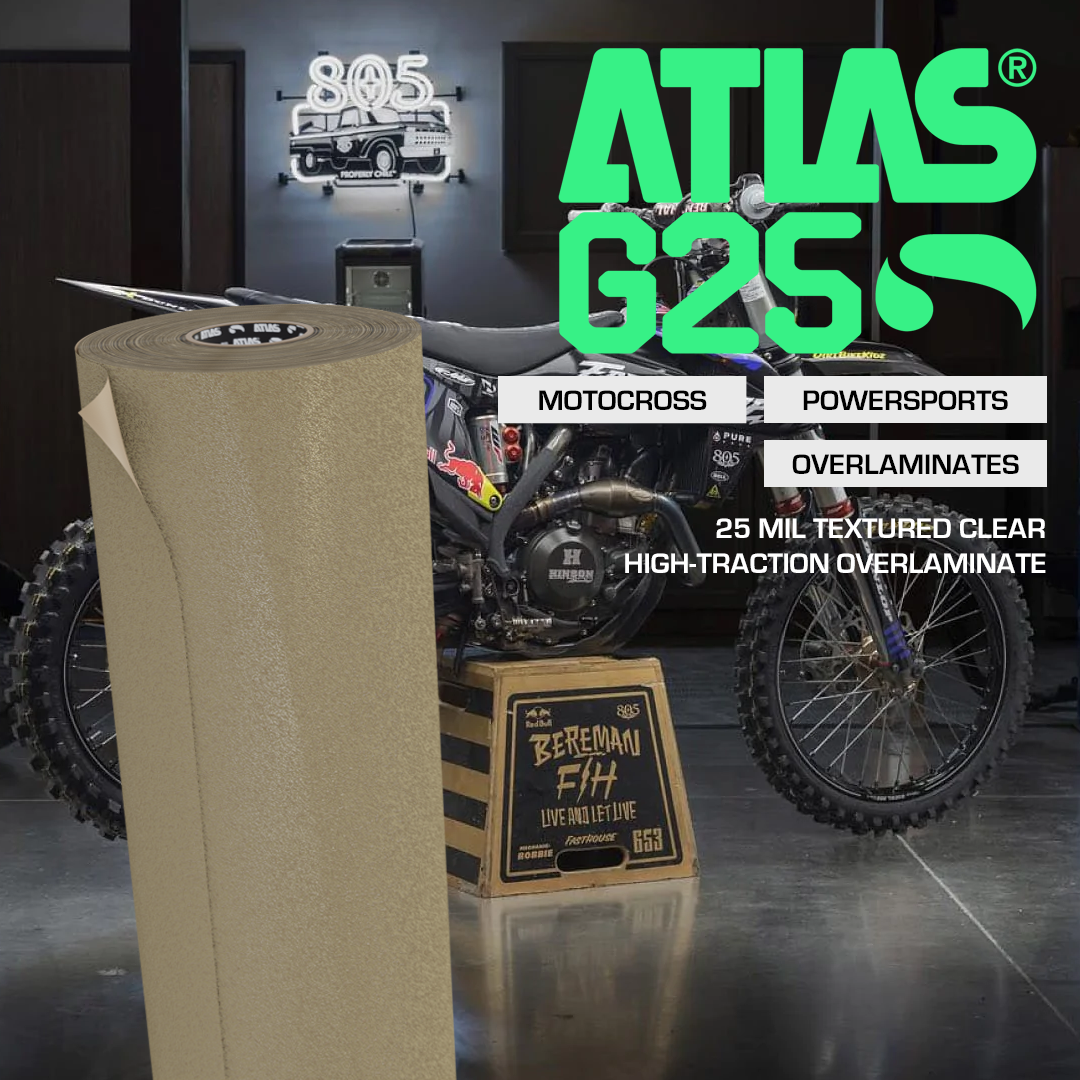

Atlas G25 is a 635-micron flexible rough textured clear vinyl overlaminate, backed with an optically clear pressure-sensitive acrylic adhesive system, specifically engineered to adhere to print media. Atlas G25 adds a layer of protection to print media designed for optimal traction and control.
Recommended Uses
Substance Incorporated recommends the following end uses for Ultragrip 2000: Added traction and durability for Motocross, ATV, and Off-Road Vehicle graphics. Anti-slip properties for Marine, Watercraft, and Trailer applications. Anti-scratch and anti-slip overlays for durable applications. Heavy-duty UL410 floor graphic overlays with excessive foot/vehicle traffic.
Performance
| Ultragrip 2000 | |
| Material | 635 micron Engineered Calendered Vinyl |
| Colour | Clear |
| Tensile Strength | 456N/25mm |
| Adhesive | Clear Solvent-Based Pressure Sensitive Acrylic |
| Adhesive Thickness | 0.056mm +/- 10% |
| Peel Adhesion | 24N/25mm from Stainless Steel |
| Liner | 90LB Natural Brown PE Coated Layflat Paper |
| Liner Release | 32 grams/25mm |
| Dimensional Stability | 0.8 mm |
| Application Temp. | 5°C to 27°C recommended, test prior to specific application |
| Temperature Range | -53°C to 104°C |
| Shelf Life | 12 months when stored at 21°C and 50% relative humidity |
| Print Compatability | N/A |
| Graphic Life | Outdoor durability up to 3 years, permanent |
| Chemical Resistence | Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion. |
Installation
Before applying an overlaminate, allow 24-48 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Mild heat may be used during installation to help Ultragrip 2000 conform to irregular surfaces.
